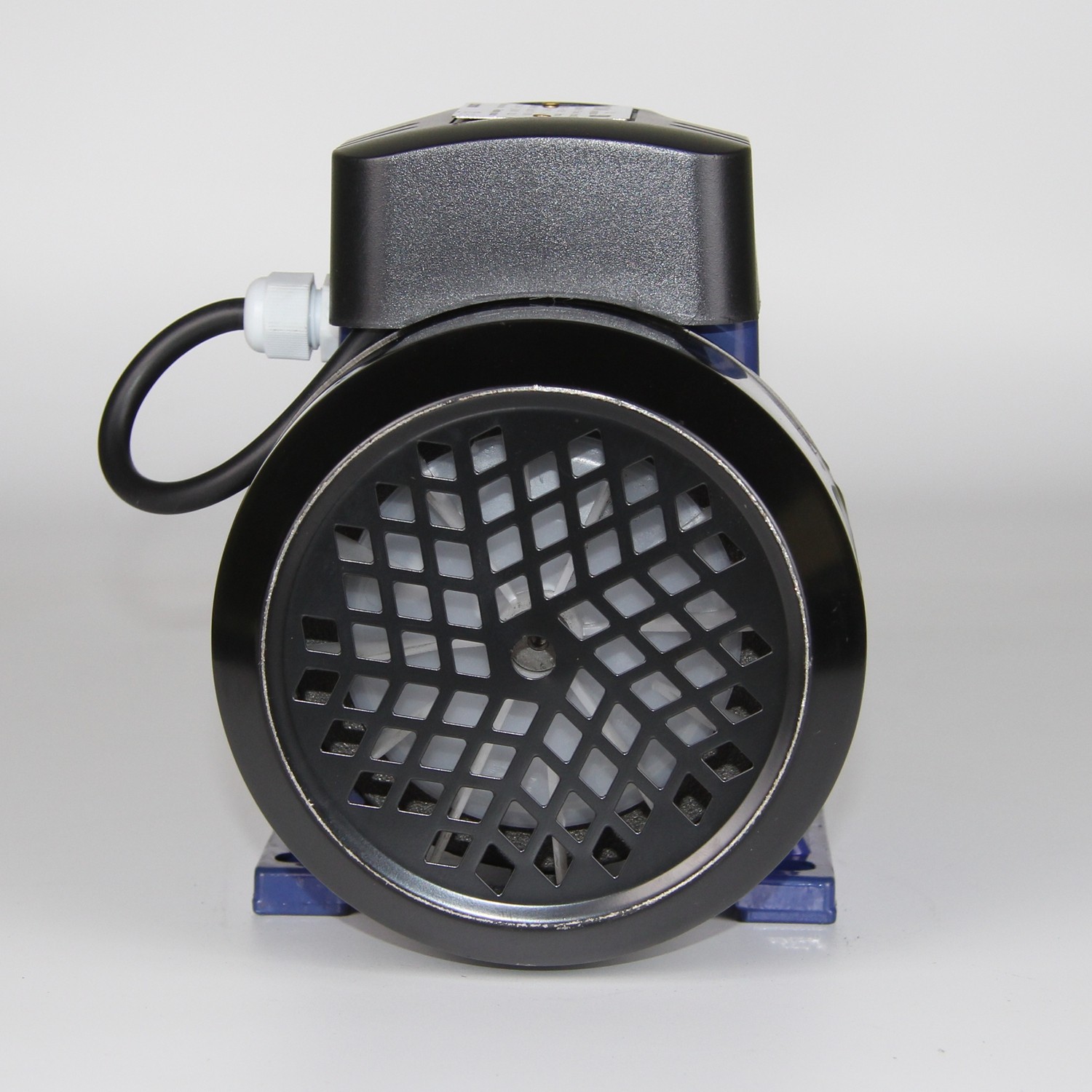

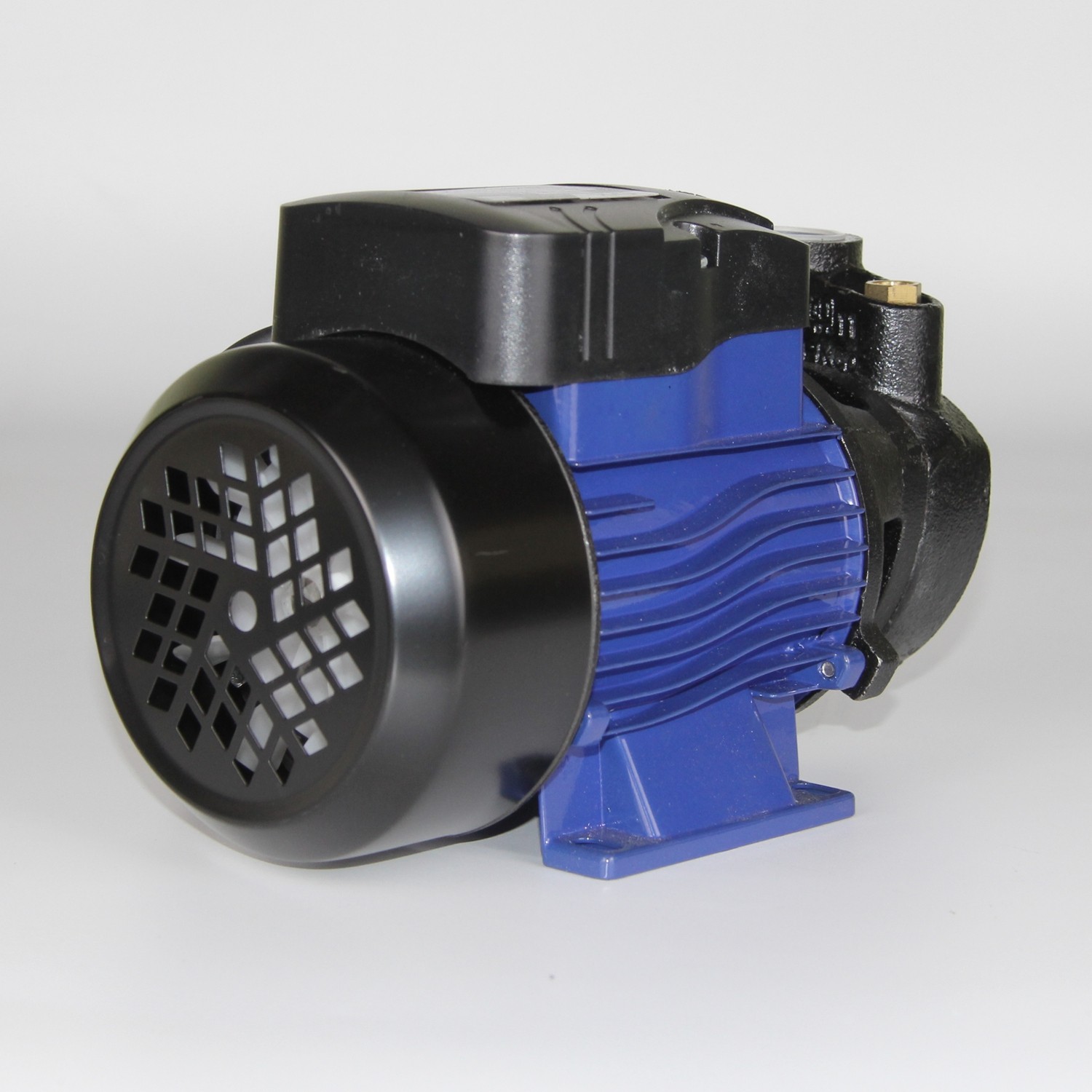

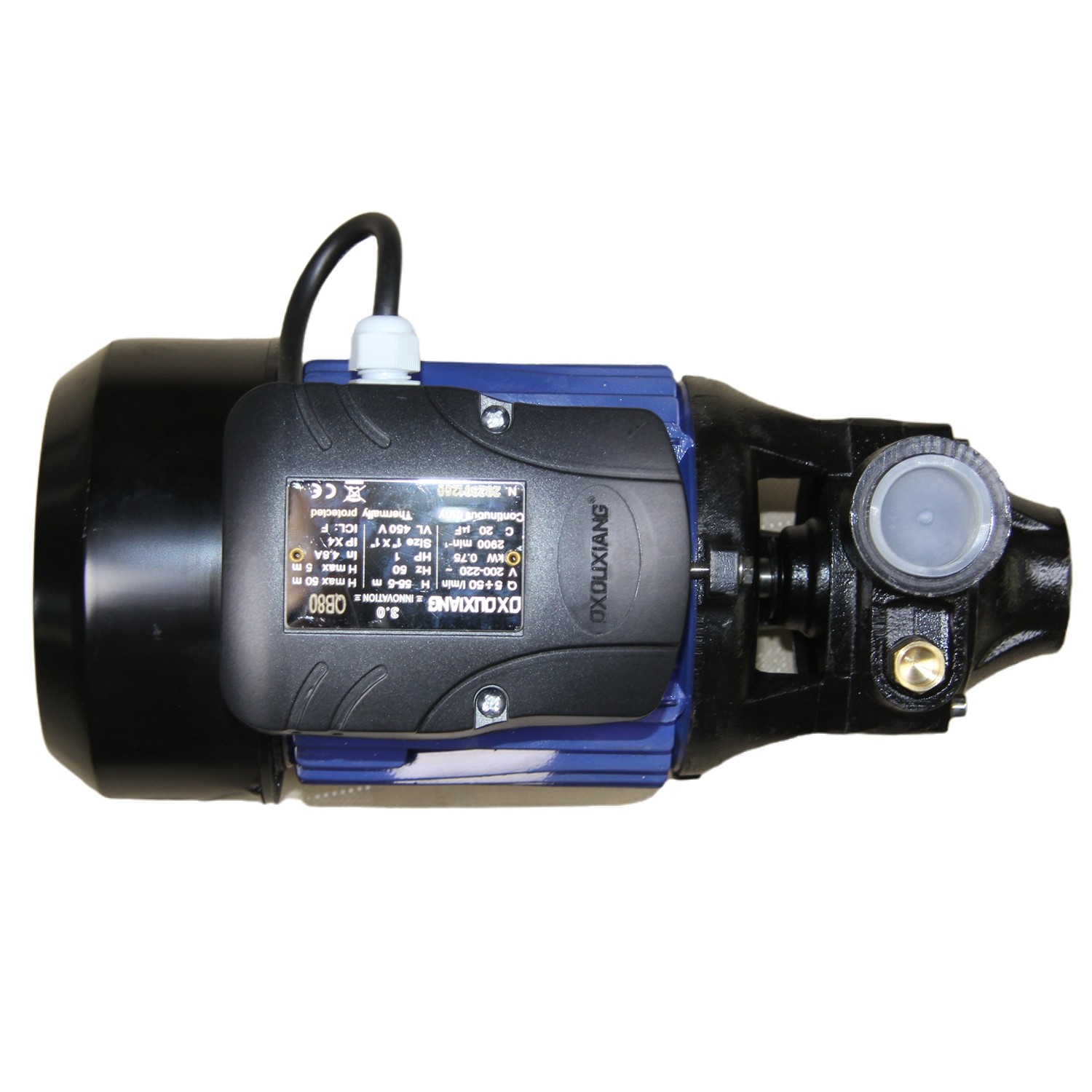

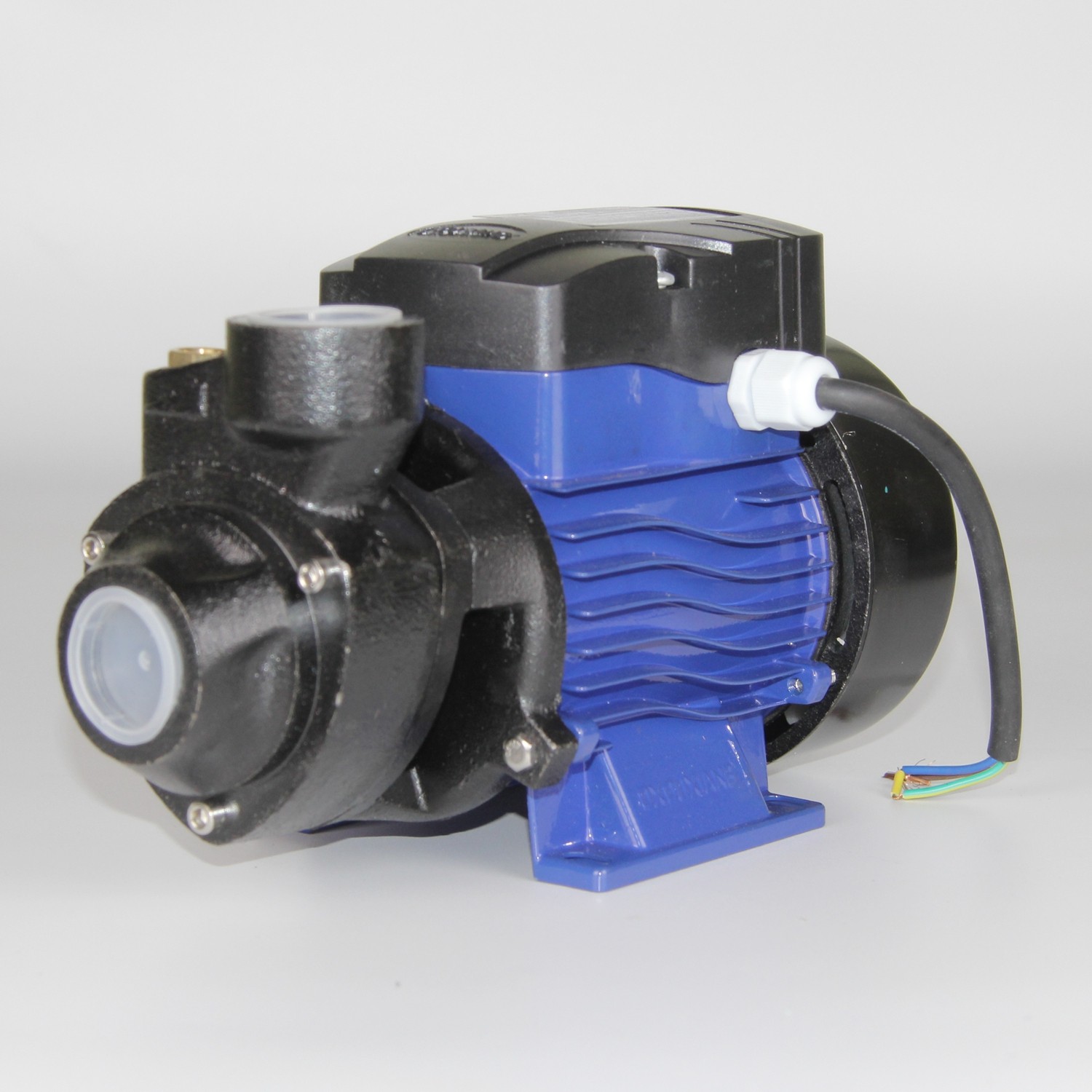

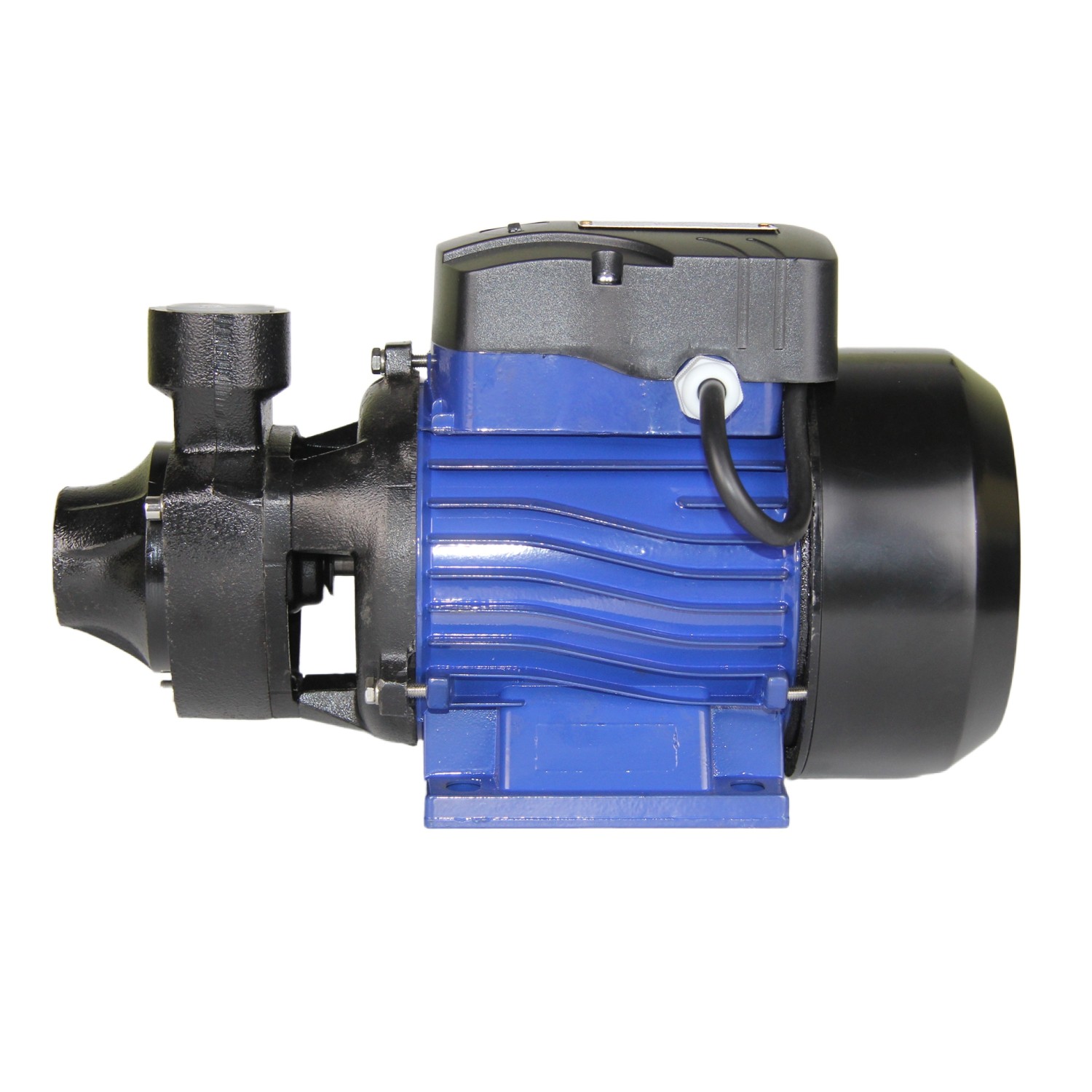

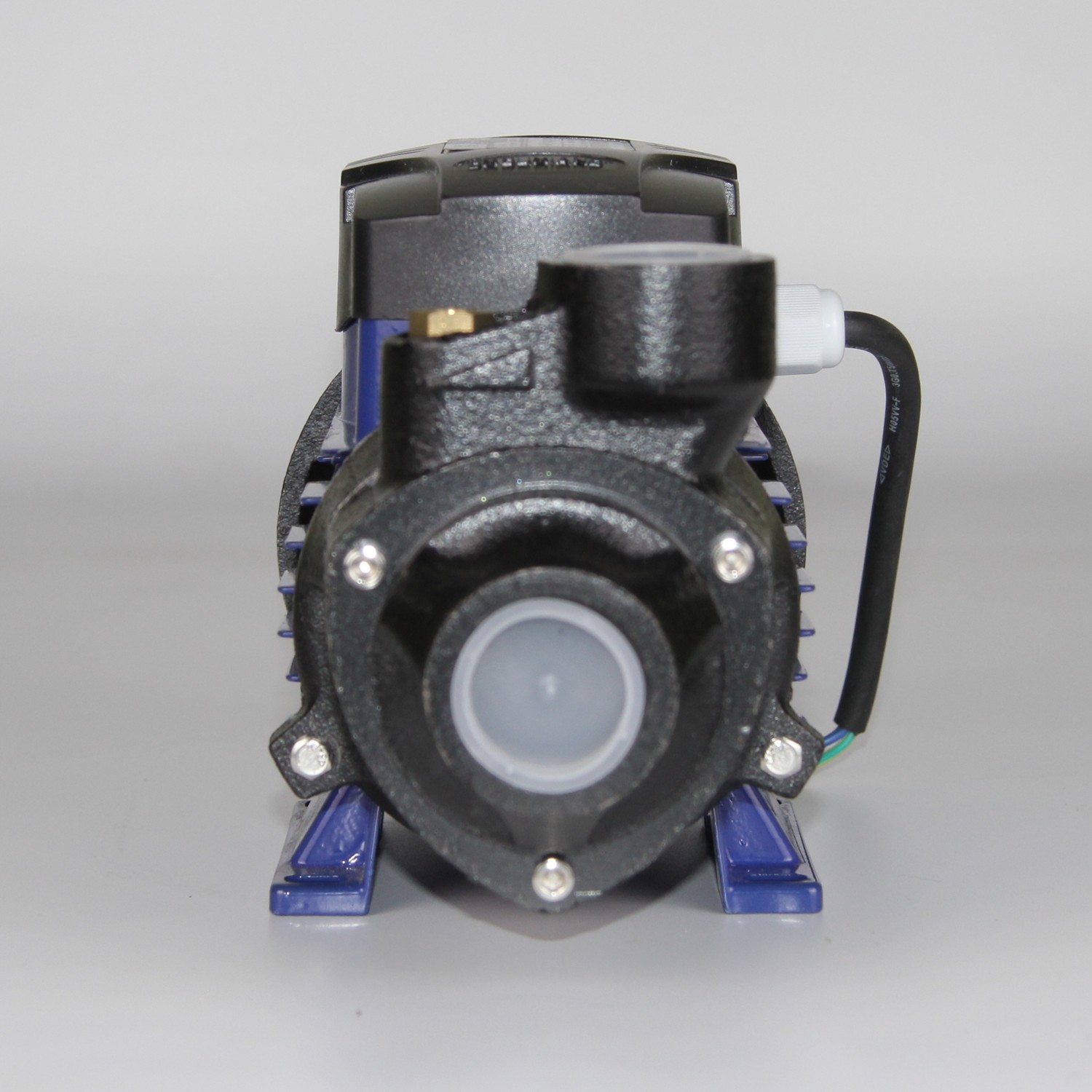

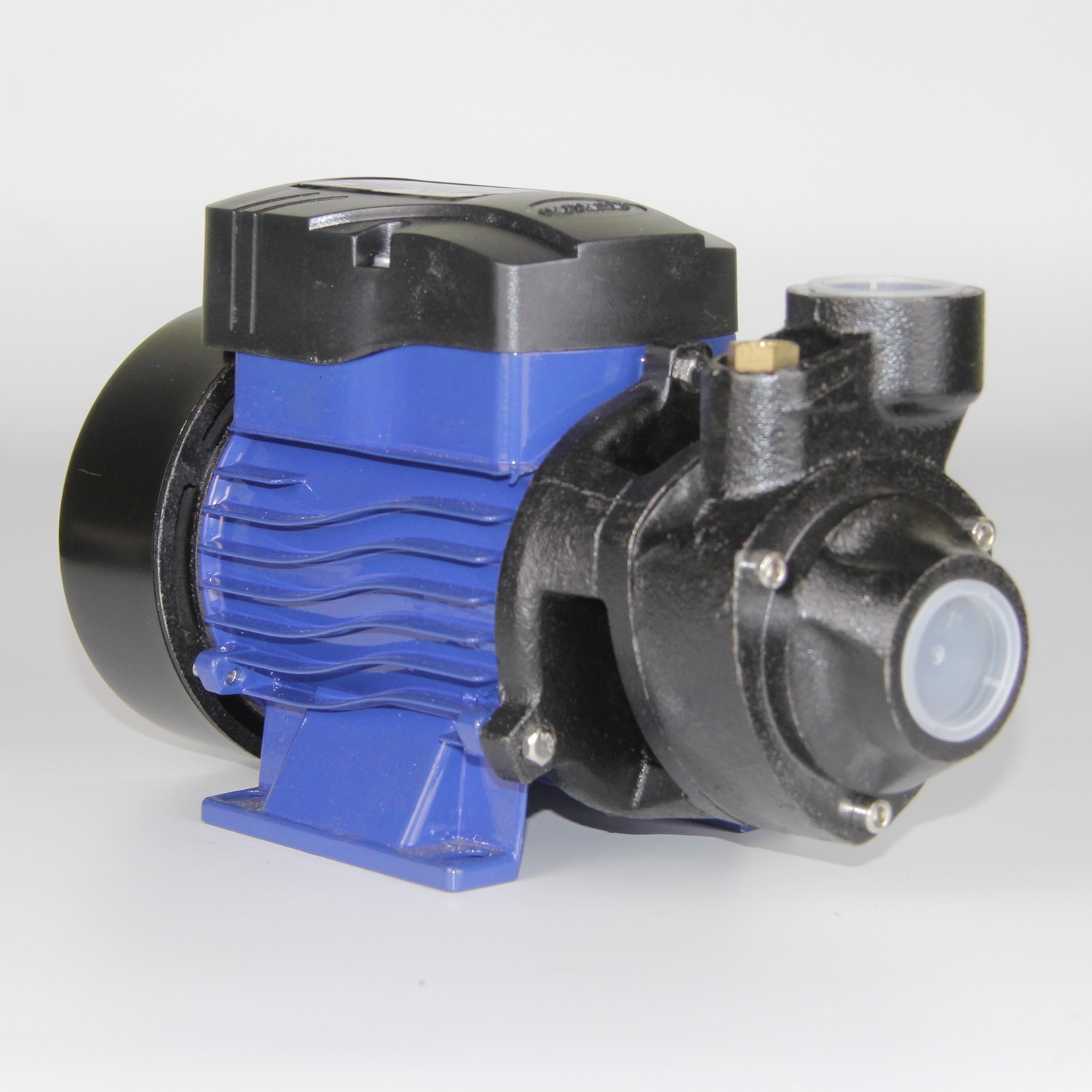

QB Series Vortex pump

QB Surface Pump Company

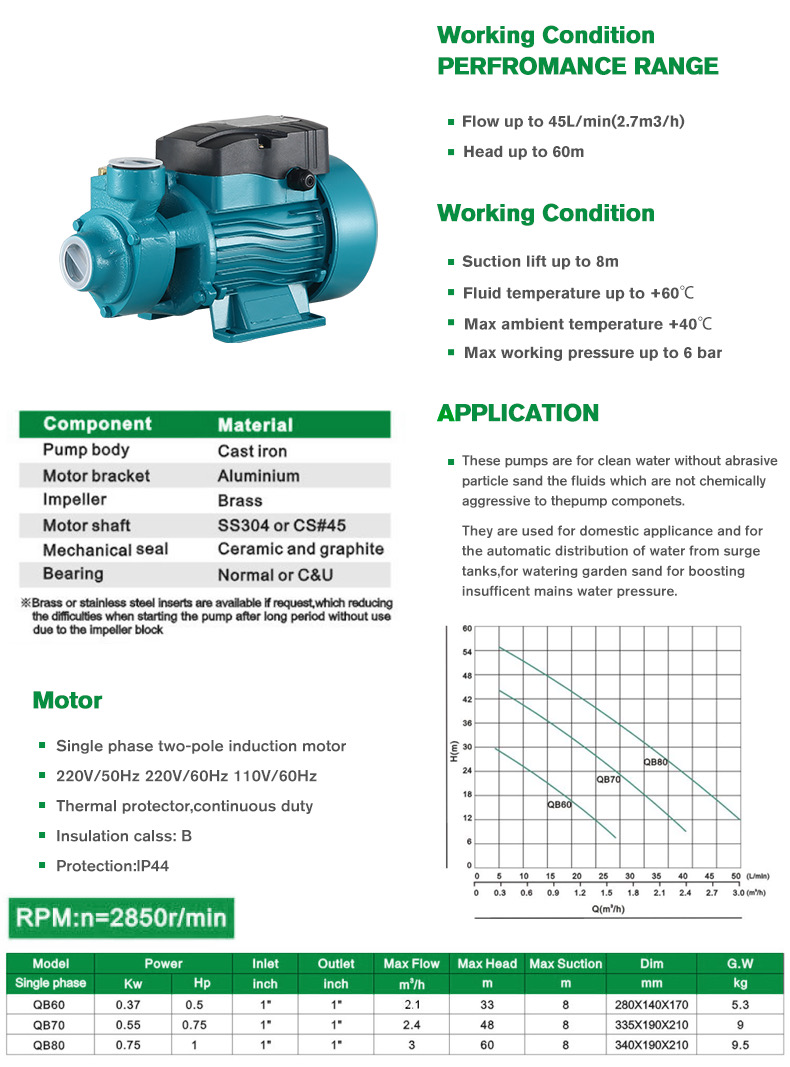

Techincal Data

MODEL	Power		H.Max	Q.Max.	Size	S.Head	G.W	Packing
MODEL	kW	HP	m	L/min	inch	m	kg	Qty.
QB60	0.37	0.5	38	38	1"x1"	8	5.7	3000
QB70	0.55	0.75	40	40	1"x1"	8	8.7	2400
QB80	0.75	1	50	45	1"×1"	8	9.3	2000

item	value
warranty	1 year
application	Irrigation and Agriculture
pressure	Low Pressure
voltage	220v
customized support	OEM, obm, odm
place of origin	China
power source	Electric
structure	Single-stage Pump
brand name	oxouxiang
horsepower	0.5HP
cable length	30cm
outlet size	1''*1''
power	0.37kw
motor	copper wire
Liquid	other
Chemical Compatibility	Water
Discharge Pipe Size	1 in
Sealing Material	carbon
Motor Enclosure	open dripproof

Selling Point

1.Product Title: "oxouxiang PK60 Surface Electric Peripheral Water Pump"

2.Electric-powered: Operates on a convenient electric power source, making it an environmentally friendly option.

3.Single-stage Pump: Designed for a simple and efficient water supply solution, ideal for small-scale irrigation and agriculture purposes.

4.Customizable: Offered with OEM support for custom manufacturing to meet individual needs and preferences.

5.Portable: Easy to install and use, making it an ideal choice for on-the-go water distribution and irrigation needs.

Primarily designed for irrigation and agriculture applications, the oxouxiangPK60 Surface Electric Peripheral Water Pump is a convenient, single-stage pump offering customizable options. This electrically powered pump is ideal for small-scale water distribution and irrigation projects, thanks to its low-pressure design and single-stage operation. Offering OEM support for customizations, the pump is portable and easy to install, making it an ideal choice for various water supply needs.
